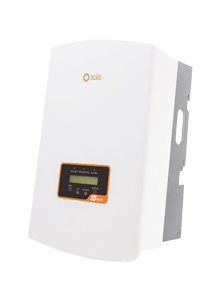

Solis 8kW S5 3 Phase Dual MPPT – DC
Artikelnummer: SOL-S5-GR3P-8K-DC-EU
Tillverkare: Solis
Kategori: Inverters
Series 5 GR3P Three Phase Grid-Tied Inverter
Product Features:
- Max. efficiency of 98.5%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 16A PV string input x 2
- Maximum AC output power of 8.8kW
- Max PV DC Power of 12kW
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
Register on SolisCloud, to support remote upgrade and control.
NRS-097-2-1 Certified
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
