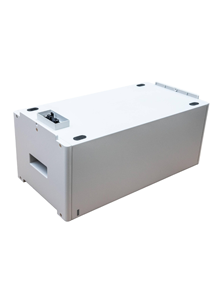

BYD Battery-Box Premium 2.56kW HVS+ Battery Module Only

Artikelnummer: BYD-HVS+

• Modular design:
  • Start at 5.1 kWh, expandable in 2.56 kWh increments up to 12.8 kWh per tower
  • Parallel connection of up to 3 towers ? max. 38.4 kWh total capacity
  • Lithium-iron-phosphate (LFP) cells for maximum safety and service life
• High efficiency:
  • = 95 % round-trip efficiency
  • Max. Charging/discharging power: 12.8 kW per tower
• Intelligent batterymanagement:
  • Automatic SOC adjustment
  • Remote maintenance via OTA updates
• Simple installation:
  • Plug-in system without internal cabling
  • Lightweight modules (approx. 38 kg) with handles - can be assembled by one person
• Robust construction:
  • IP55 - suitable for indoor and outdoor installation
  • Compact dimensions: e.g. 1467 × 610 × 282 mm with 5 modules
• Compatibility:
  • Supports leading single-phase and three-phase inverters
• Guarantee & security:
  • 10-year manufacturer's warranty

NOTE: Please note to create a fully working HV BYD battery stack you will always require 1x Battery Base with Battery Control Unit (Attention: New BCU "BYD-HVB-BCU" needed, which only fits to HVS+, HVM+, HVB)  and between 2x and 5x HVS+ battery modules.

To ensure the best possible performance of the storage system Segen recommends updating battery and inverter firmware on commissioning.

Most up to date battery firmware file is available on the link below:

http://www.eft-systems.de/de/content/7/Downloads

Please download the B-BOX HV Software File and extract the .ZIP file on to your drive. Firmware file needs to be ".img" extension to be recognized by BYD Battery.
